ELS Dual Leadscrew Electronic Change Gear Conversion Kit for WM210V BHC210 HS210 JY210V CTC210

ELS Dual Leadscrew Electronic Change Gear Conversion Kit for WM210V BHC210 HS210 JY210V CTC210

$144.99 USD
$144.99 USD
Sale Sold out
Shipping calculated at checkout.
Specification

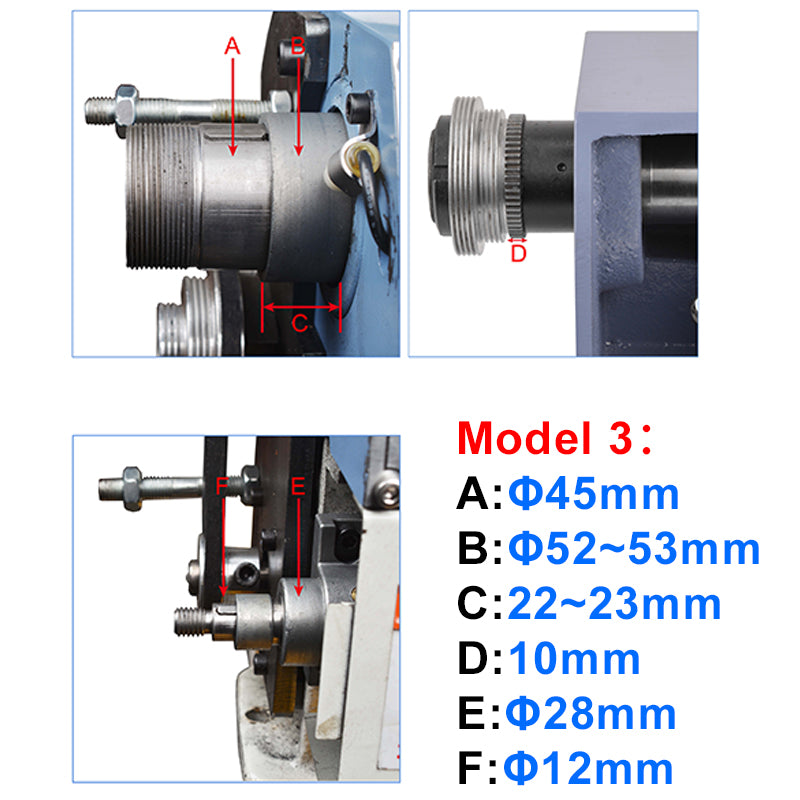

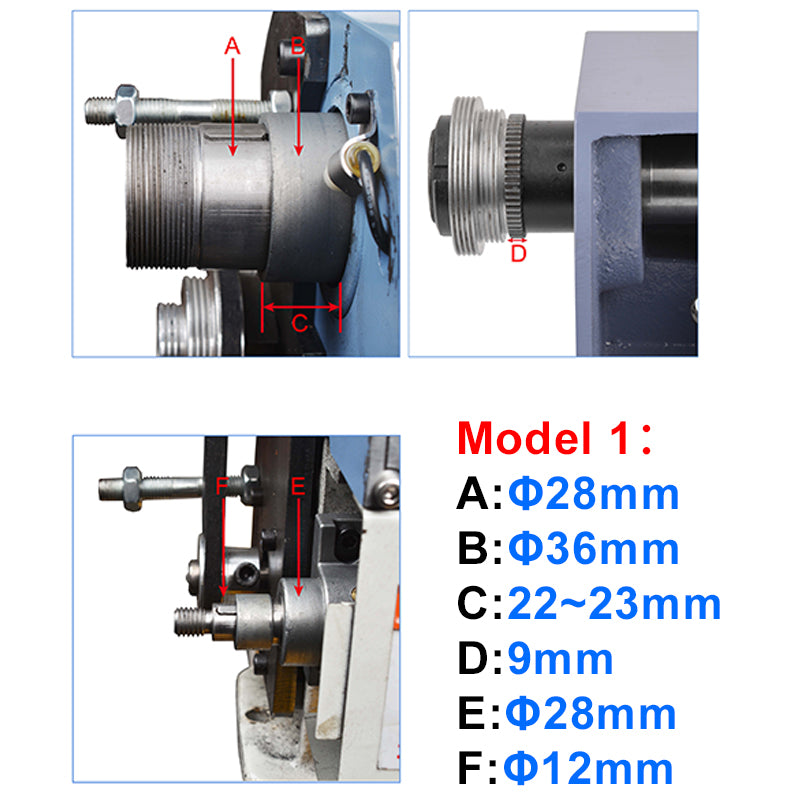

Not sure this part fits your machine?
Contact us with your machine model or part number before ordering.

Compatibility

WM210V
Bernardo Profi 400V
Cormak TYTAN 500
BHC210
HS210
JY210V
CTC210

Part Number Reference

Specifications

Part Type: ELS Dual Leadscrew Conversion Kit
System Type: Electronic Leadscrew / Electronic Change Gear
Function: Electronic Feed and Threading Control
Application: Lathe Feed / Threading System Upgrade
Machine Type: Mini Lathe

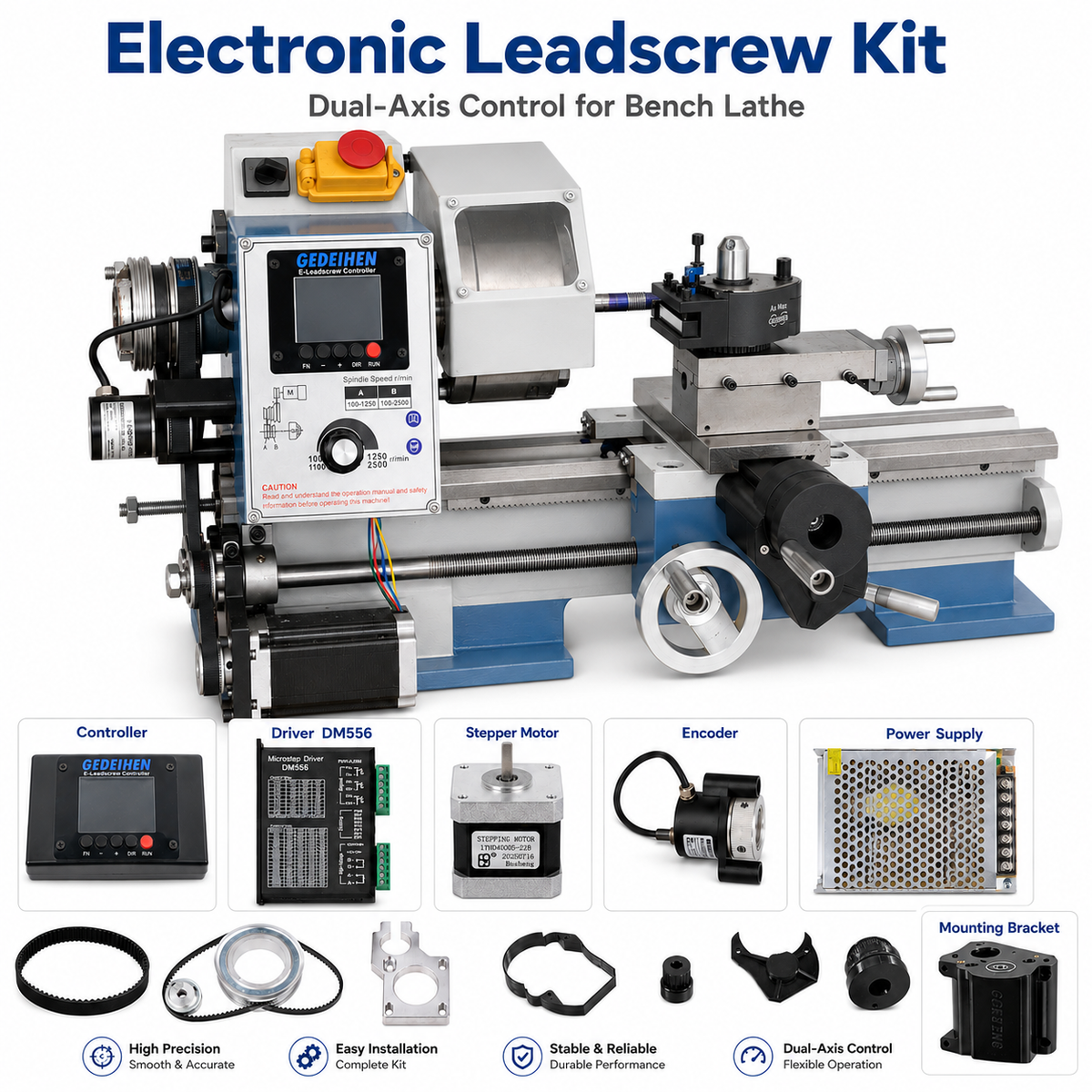

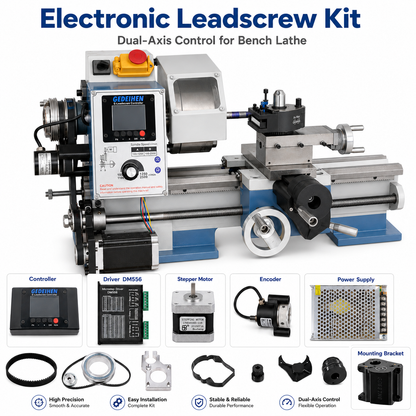

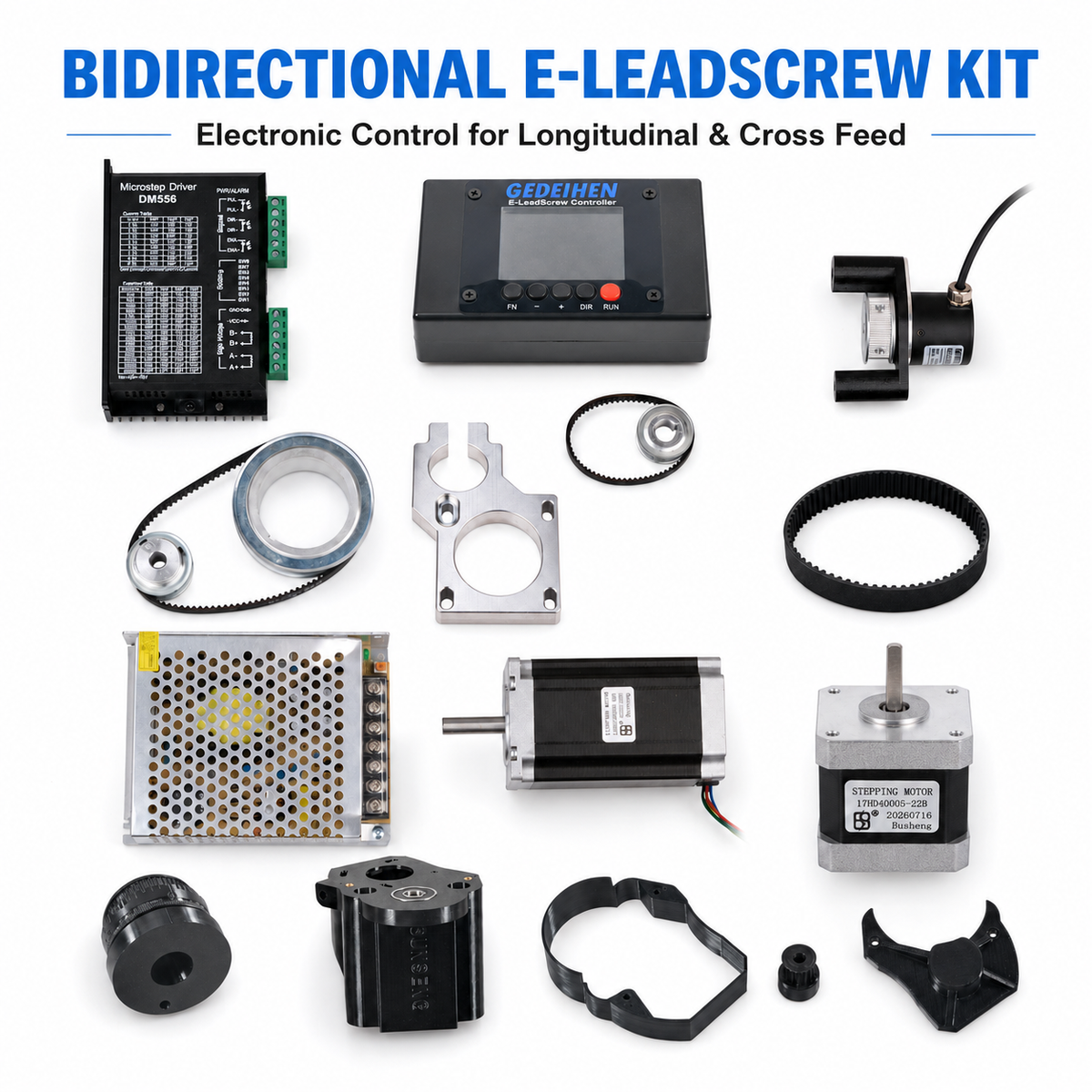

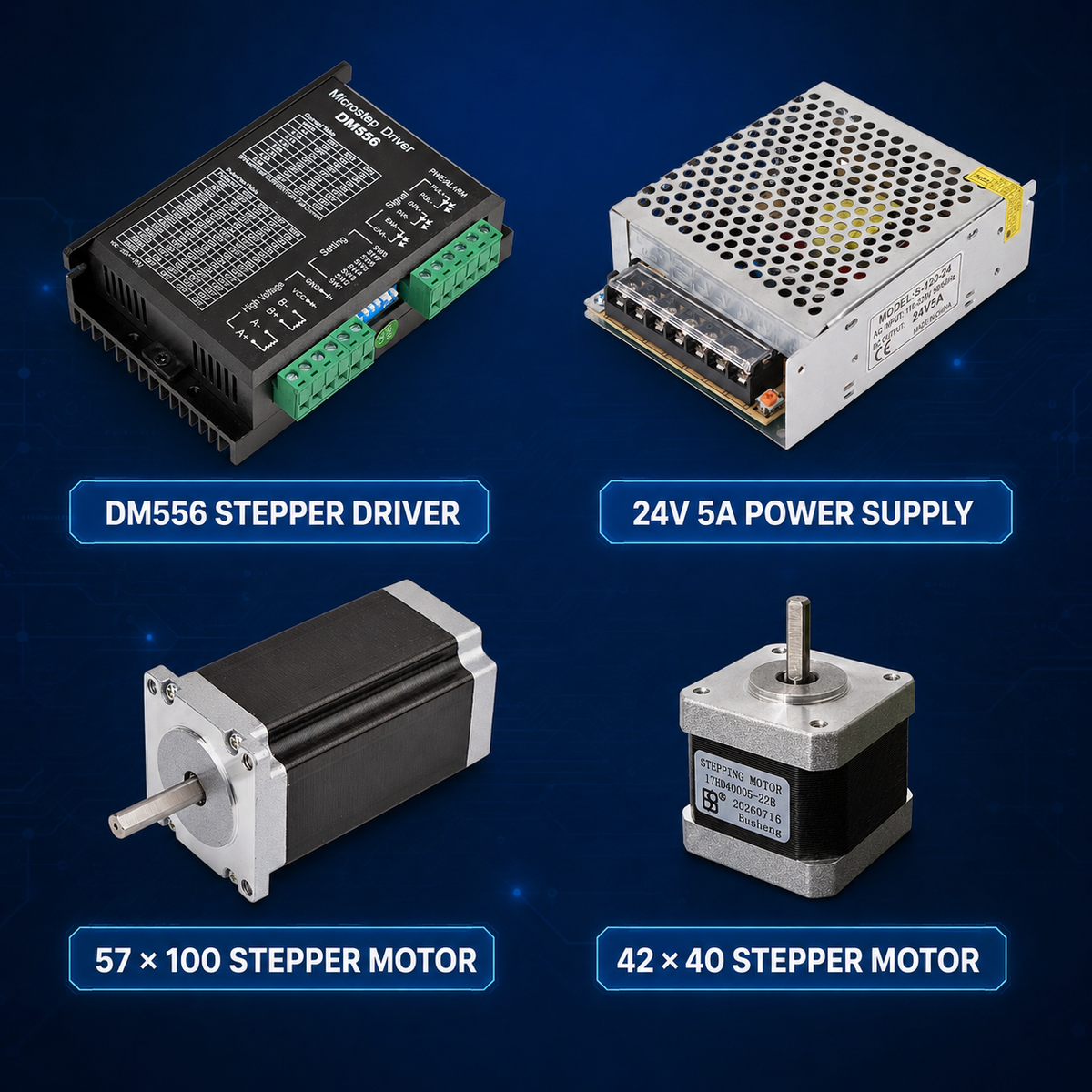

Package Includes

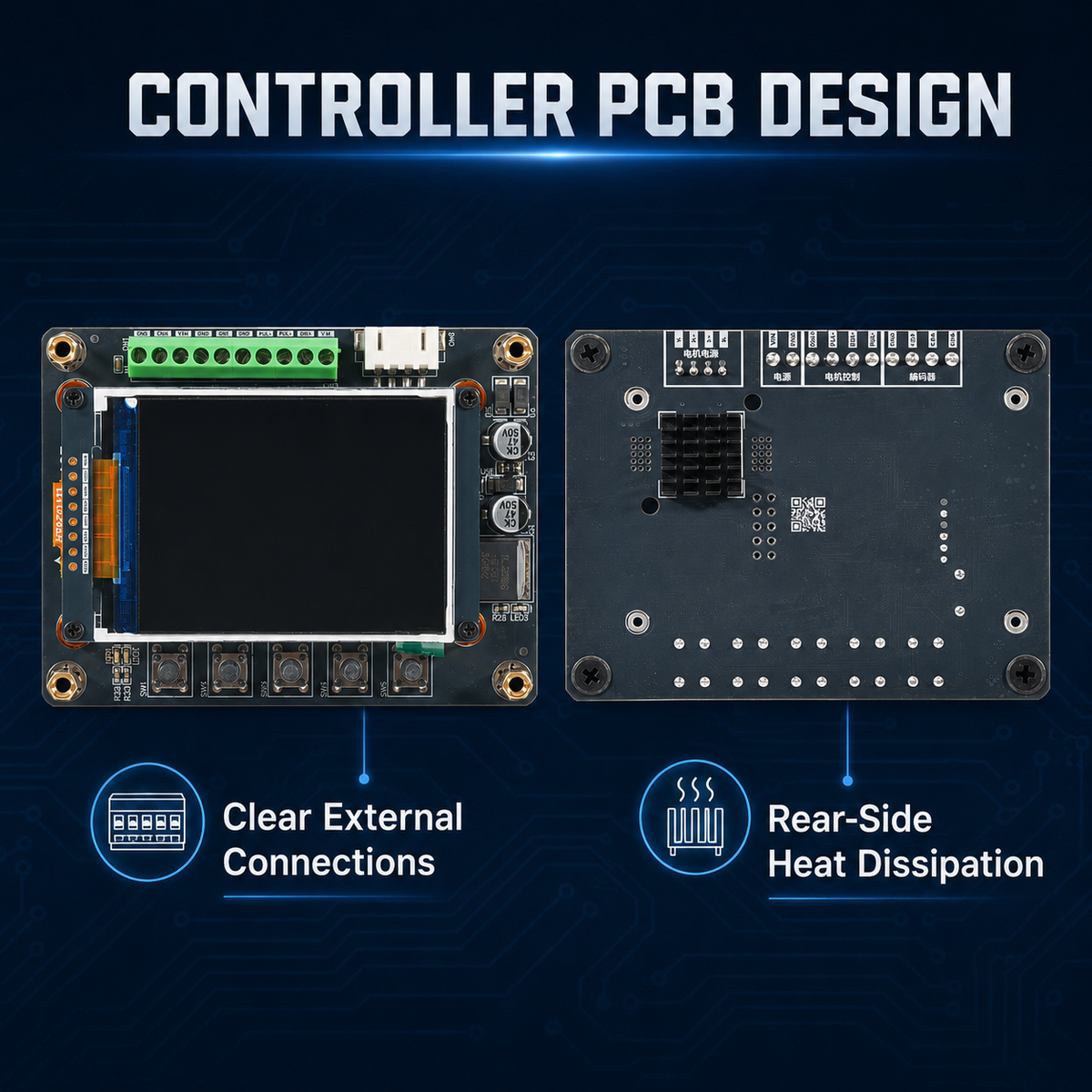

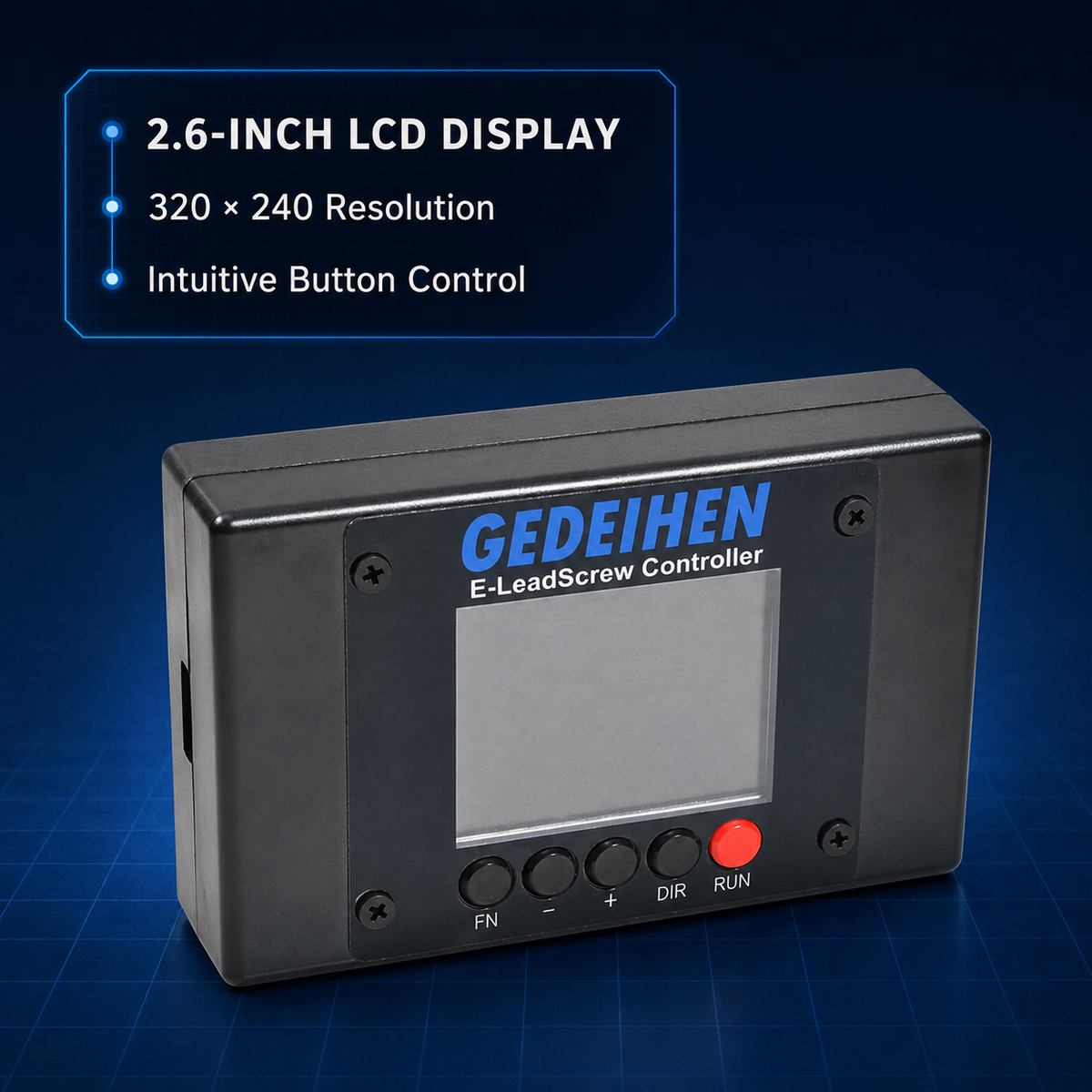

1xDual-leadscrew controller

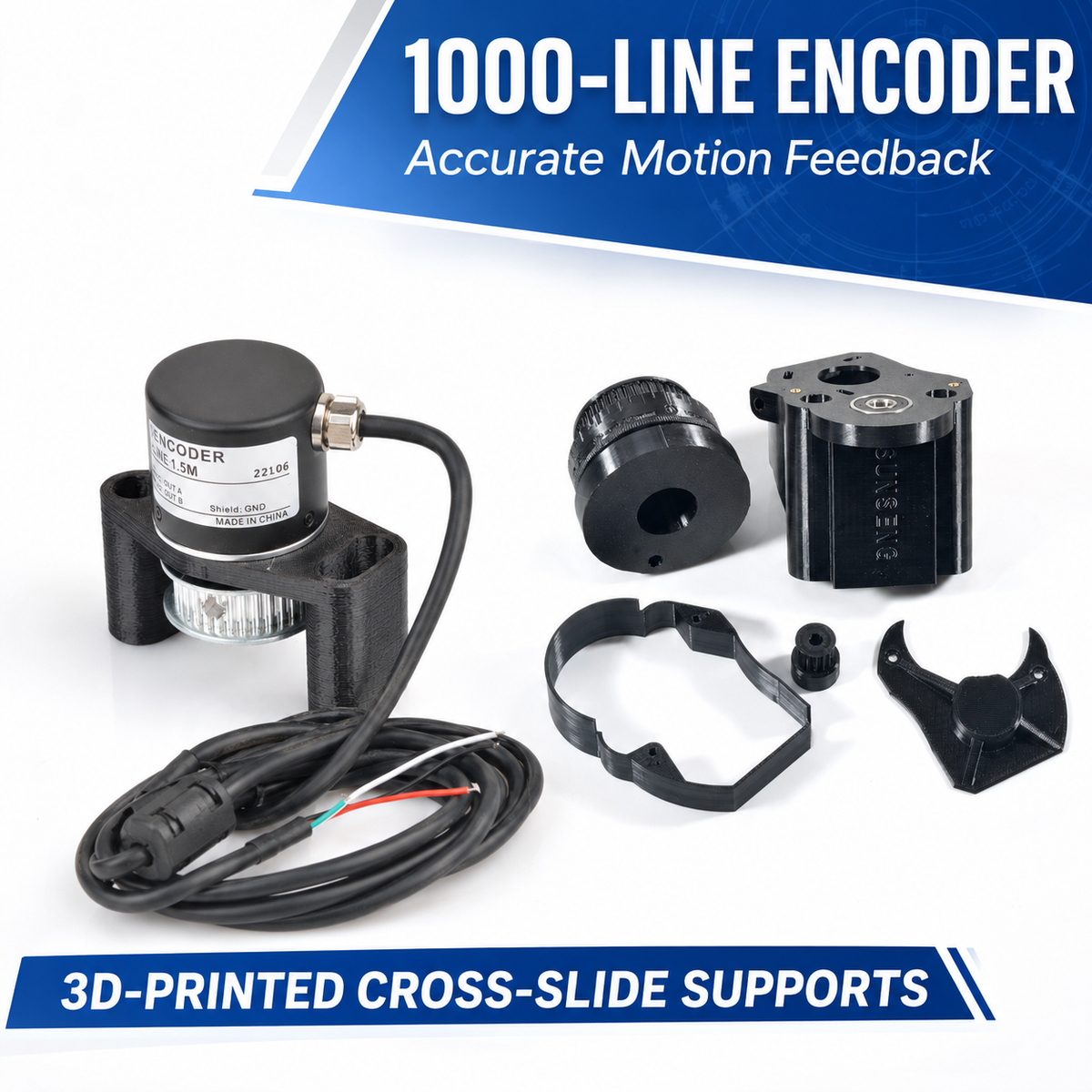

1xEncoder
1xPower adapter
1xStepper motor driver
1x57x100 Stepper motor
1x40x42 Stepper motor
1xSet of carriage mounting brackets
1xSet of aluminum alloy timing pulleys
1xStepper motor mounting bracket
1xScrew kit
3xTiming belts

Shipping & Duties

Shipping charges are calculated at checkout. Import duties, VAT, GST, customs clearance fees, and other local taxes are not included and are the buyer's responsibility.

Returns & Refunds

Returns are accepted within 30 days of delivery, subject to our Return & Refund Policy. The buyer is responsible for all return shipping costs unless the return is due to an error on our part.

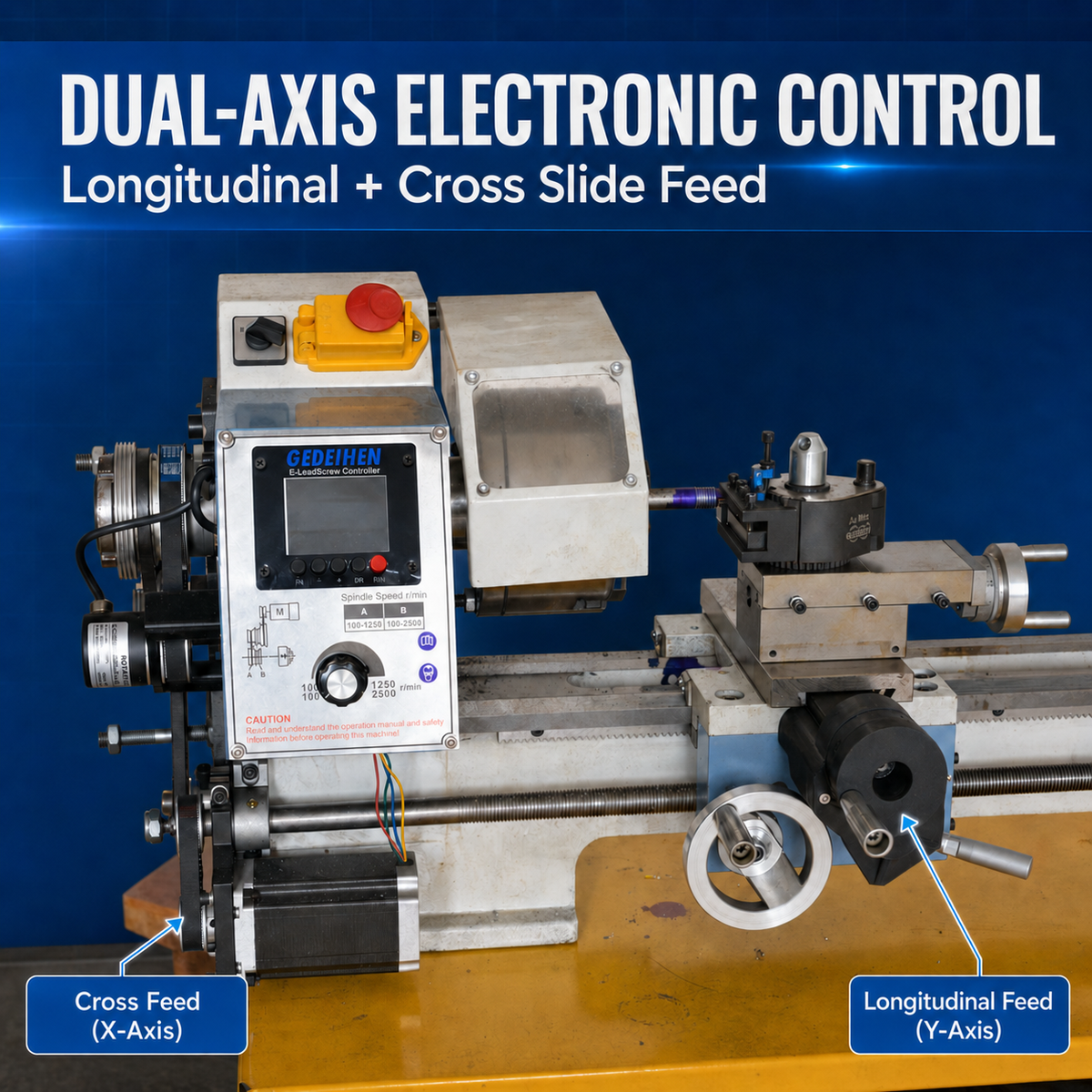

This machine uses a two-axis electronic lead screw (ELS) controller for lathes, with the following main features:

X-axis control: The spindle encoder drives the X-axis lead screw for electronic following.

Y-axis control: The intermediate slide moves independently, linked with the X-axis for tool arrangement.

Automatic cycle: After parameter settings, it can automatically complete cycles such as tool feed, thread cutting, automatic turning, and gear shaping (feed → length extension → retraction → return → next cut).

Simplified operation: Reduces the tedious operations of the shift wheel, opening and closing the nut, and manual tool division.

Core capabilities:

1. Two-axis linkage—While the X-axis follows the spindle feed, the intermediate slide feeds, retracts, and avoids obstacles according to the tool division plan; multiple cuts can be executed continuously.

2. Automatic completion of threaded and other workpieces—After setting the length, pitch (or feed rate), and tool division, select manual or automatic mode to complete the entire section; the spindle can rotate continuously.

3. Graphical operation—English/Chinese interface + eight-grid selection function; tool division can be previewed before starting.
